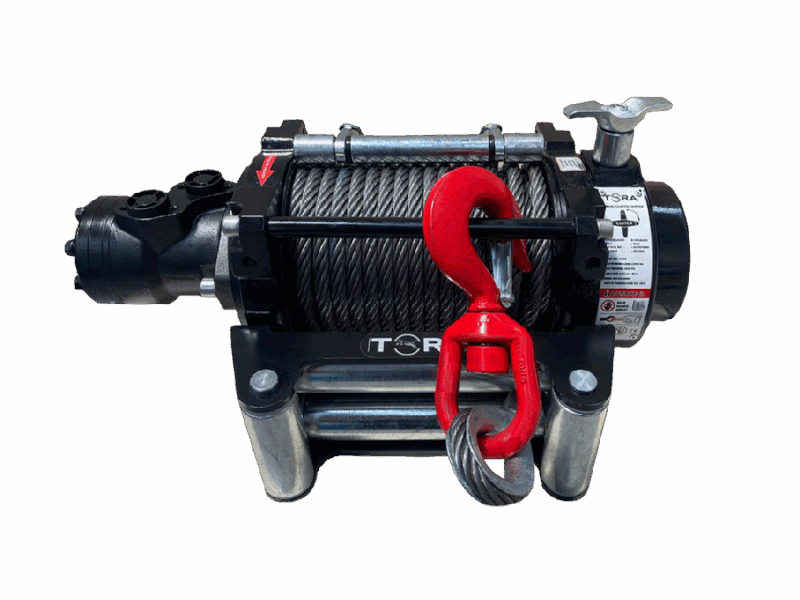

Hydraulic Winch 15000 LBS | THW-15K

HYDRAULIC WINCH THW SERİES
HYDRAULIC WINCH
HYDRAULIC WINCH
HYDRAULIC WINCH
HYDRAULIC WINCH
HYDRAULIC WINCH
HYDRAULIC WINCH
Hydraulic Winch 8.000 LBS
Hydraulic Winch 8.000 LBS

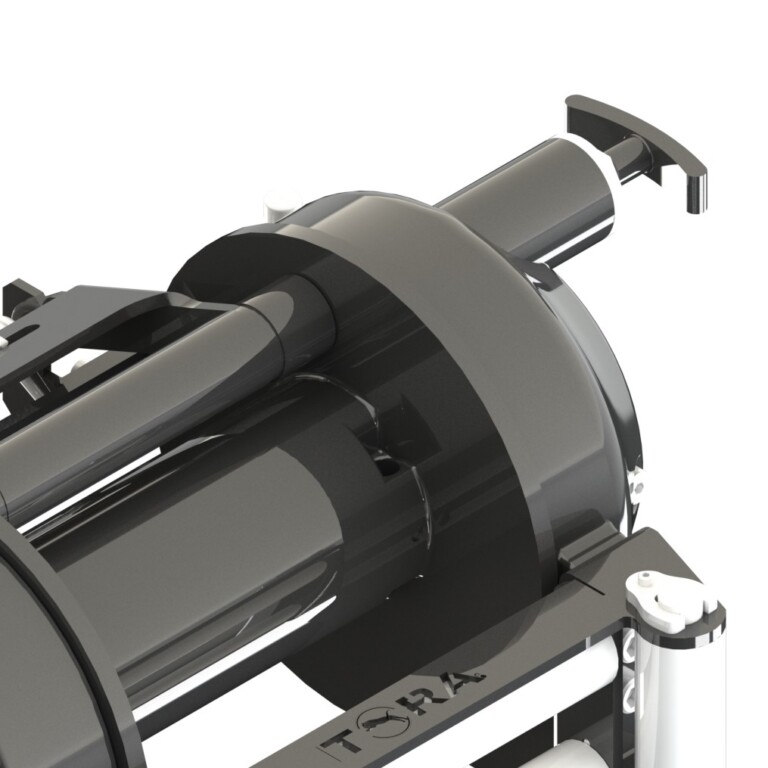

Manual

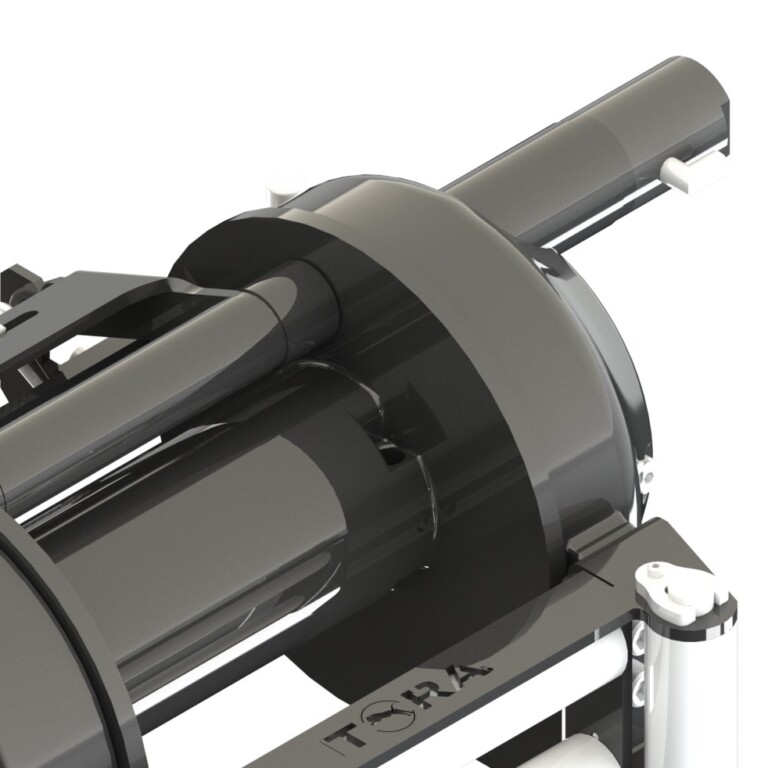

Pneumatic

Hydraulic Winch 8.000 LBS

Manual

Hydraulic Winch 8.000 LBS

Pneumatic

THW-15K Properties

  • High-strength, long-lasting steel body
  • Extra reinforced planetary gear system with special steel heat treatment
  • Lightweight and powerful design
  • 100% negative effective hydraulic disc brake system
  • Standard winch guide system and rope stabiliser
  • Manual winch discharge system provided as standard
  • High torque hydromotor
  • Meets CE-EN 14492-1
Technical Catalog

Applications : General Industrial, Mining & Construction, Railroad, Specialty Vehicle, Towing & Recovery, Trailer, Utility

THW-15K Technical Data

Maximum Pulling Force15.000 lbs
Rope Diameter1/2 in
Maksimum Rope Length173 ft
Hydromotor19.2 ci. (315 cc)
Maximum Pump Flow15.8 GPM
Gear Ratio6/1
Maximum Operating Pressure2060 psi
Recommended Gear Oil80 w 90 (27 fl oz)
Weight180 lbs
Clutch Control (Optional)Air or Manual
Speed34 ft/min



Warning!

  • Valve’s a-b line must be opened (which is need to operate the hydraulic winch) otherwise hydraulic brake will release the load
  • Hydromotor leak line must be opened and installed to the oil tank
  • The last 5 winding ropes should always be left on it
  • It is designed and manufactured for winch pulling purposes, do not use it to remove people or materials
