Hydraulic Winch 40,000 LBS | THW-40K

HYDRAULIC WINCH THW SERİES

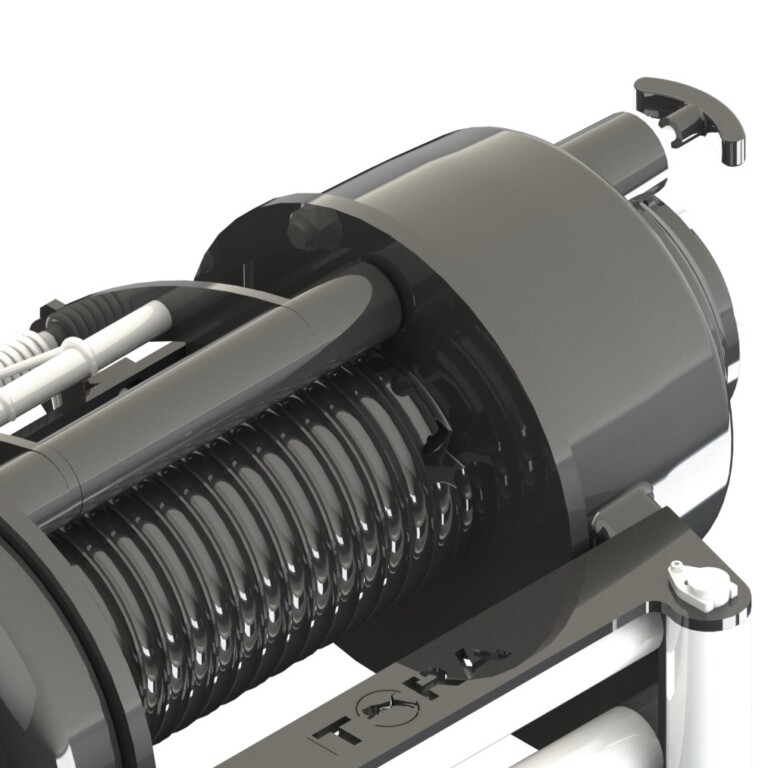

Manual

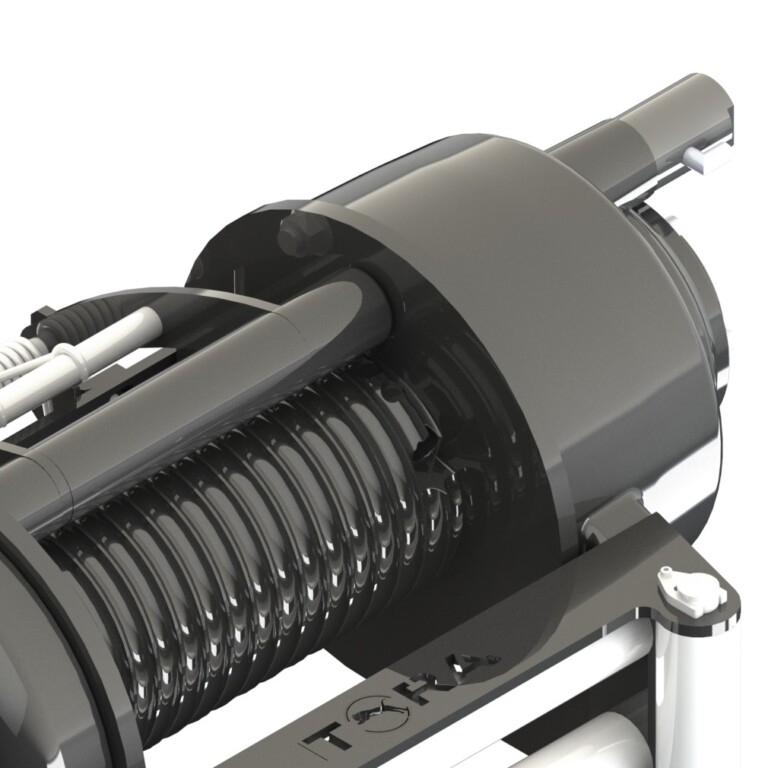

Pneumatic

Manual

Pneumatic

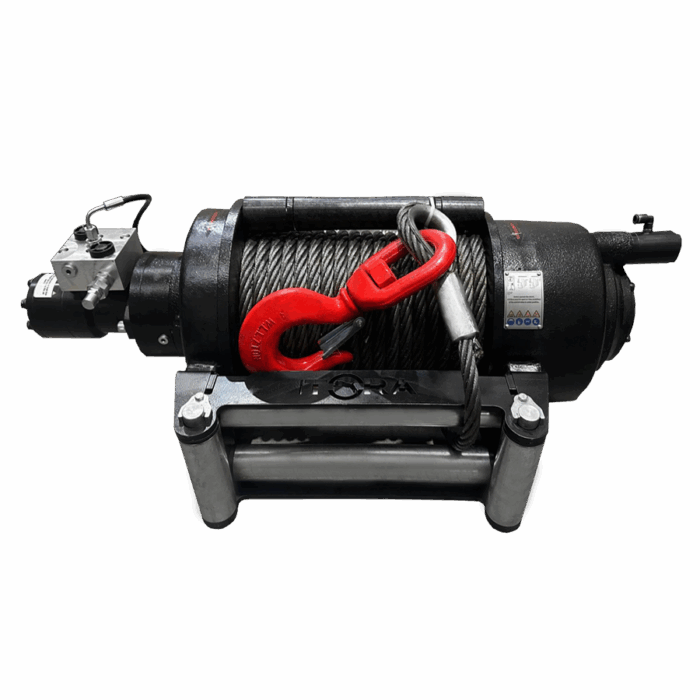

THW-40K Planetary Hydraulic Winch

  • Spring-Applied, Hydraulic Multi-Disc Brake System
  • Compact, Lightweight and Powerful Design
  • Pneumatic or Manual Free Spool as Standard
  • Optional 4- Way Fairlead Cable Guide and Cable Tensioner
  • Optional Personal Protective Panel
  • High Torque Hydraulic Motor with Counterbalance Valve
  • Meets CE-EN 14492-1
Technical Catalog

Applications: General Industrial, Mining & Construction, Oil & Gas, Railroad, Agriculture, Specialty Vehicle, Towing & Recovery, Trailer, Utility, Tractor, Drilling, Refuse Trucks, Hauling Trucks, Tow Trucks&Trailers

THW-40K Technical Data

Maximum Pulling Force  40.000 lb
Cable Diameter 0.7 in
Maximum Cable Length 137 ft
Hydraulic Motor 12.2 ci. (200 cc)
Maximum Pump Flow 15.8 gpm
Gear Ratio 36/1
Maximum Operating Pressure 2393 psi
Recommended Gear Oil 80 w 90 (33.8 fl oz)
Weight 429 lb
Free Spool (Optional) Air or Manual
Speed 14 ft/min

Warning!

  • Use a 4-way, 3-position motor spool directional control valve with an integral relief valve. Otherwise hydraulic brake will release the load.
  • Connect hydraulic motor drain port to the oil tank.
  • The last 5 winding cables should always be left on the drum to safely maintain friction and hold the load.
  • It is designed and manufactured for winch pulling purposes, never use the winch for lifting or transporting people.
