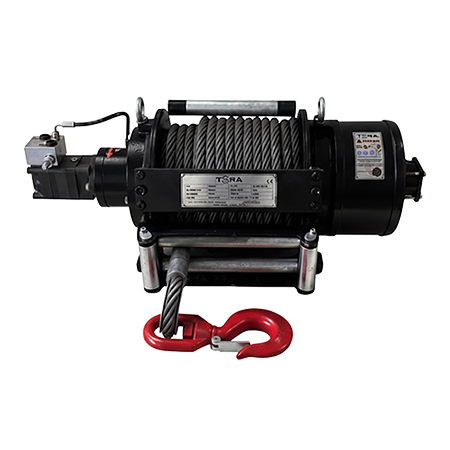

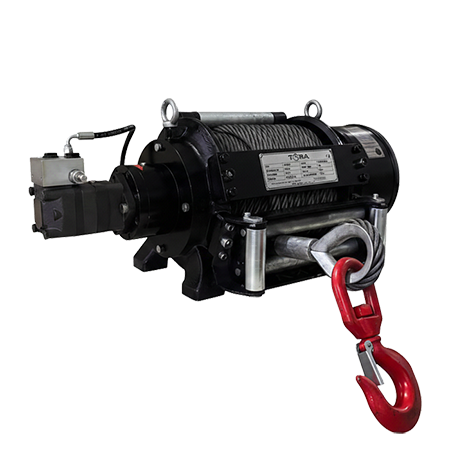

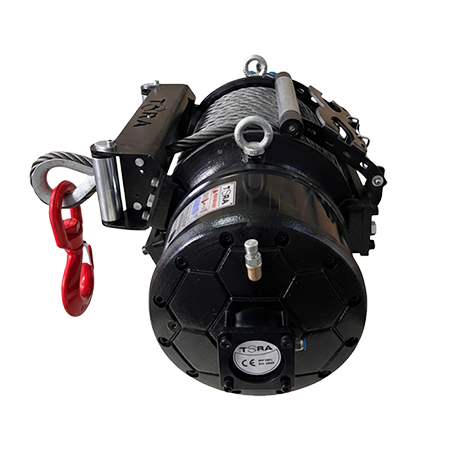

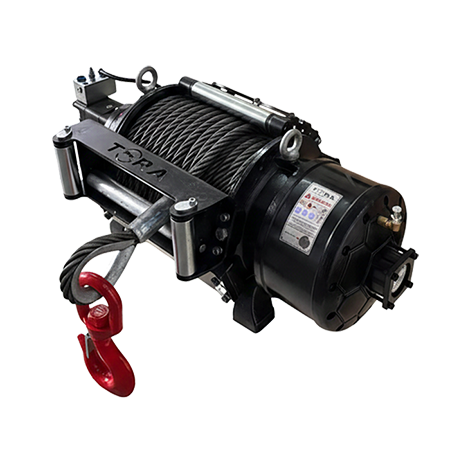

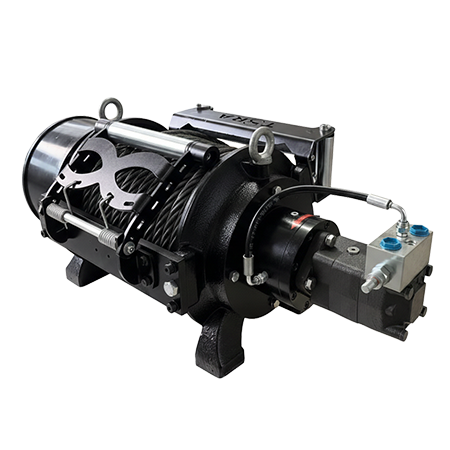

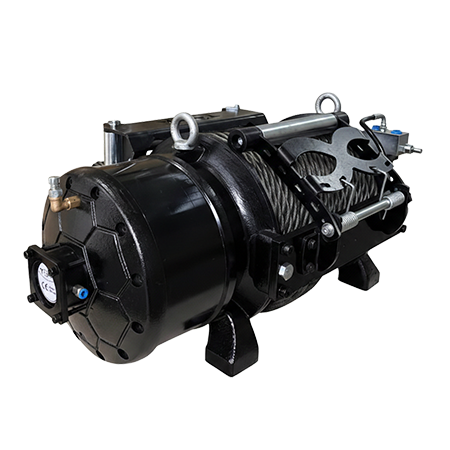

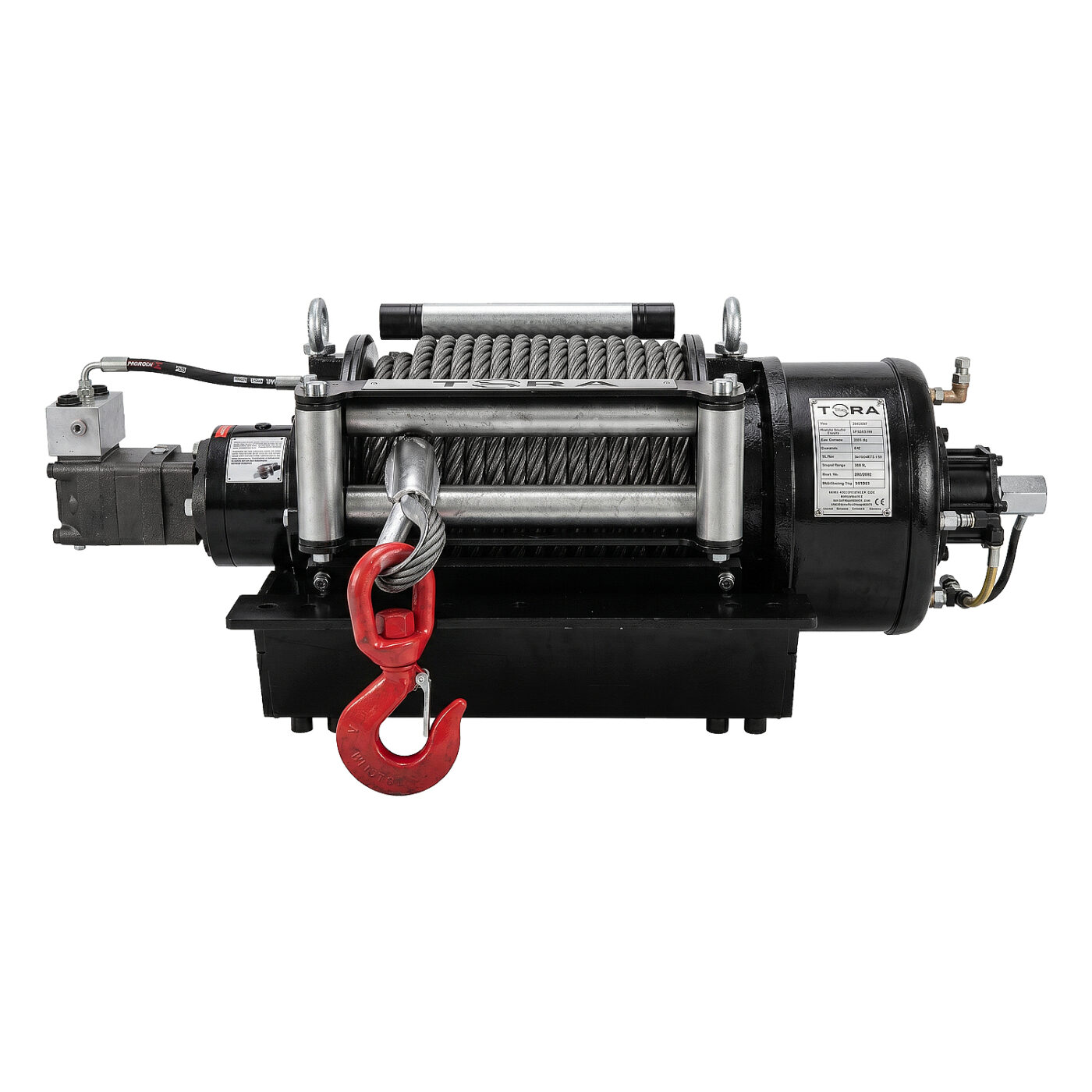

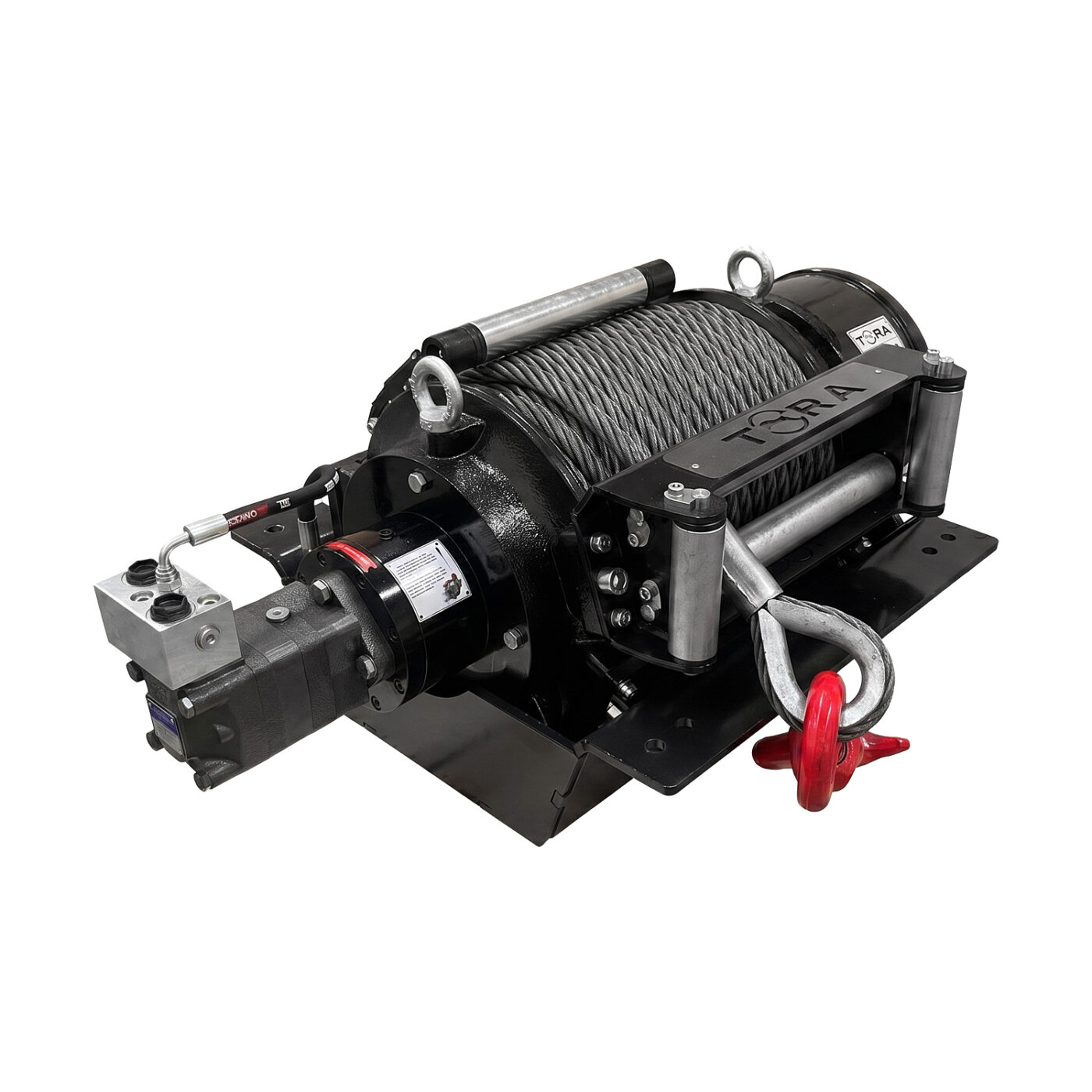

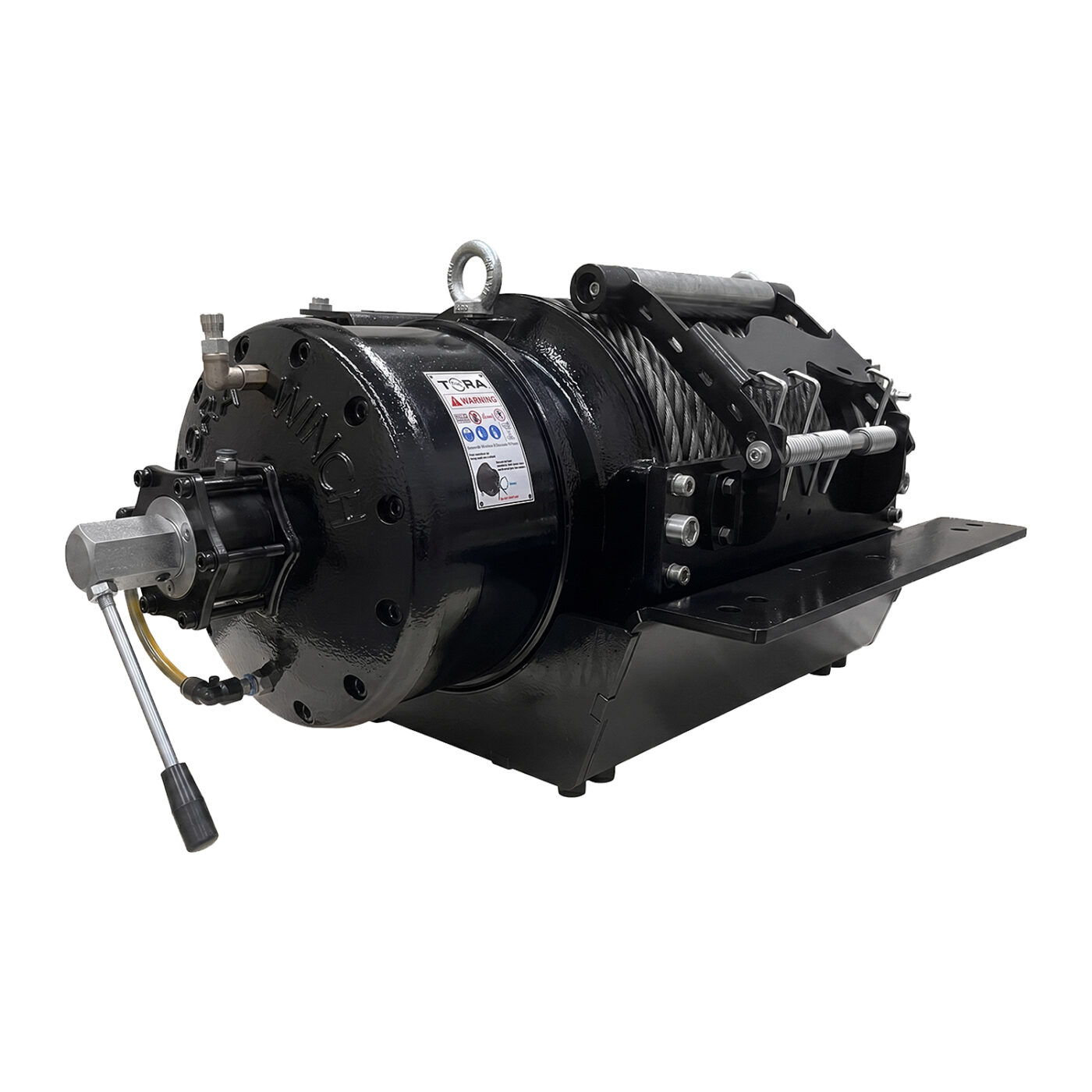

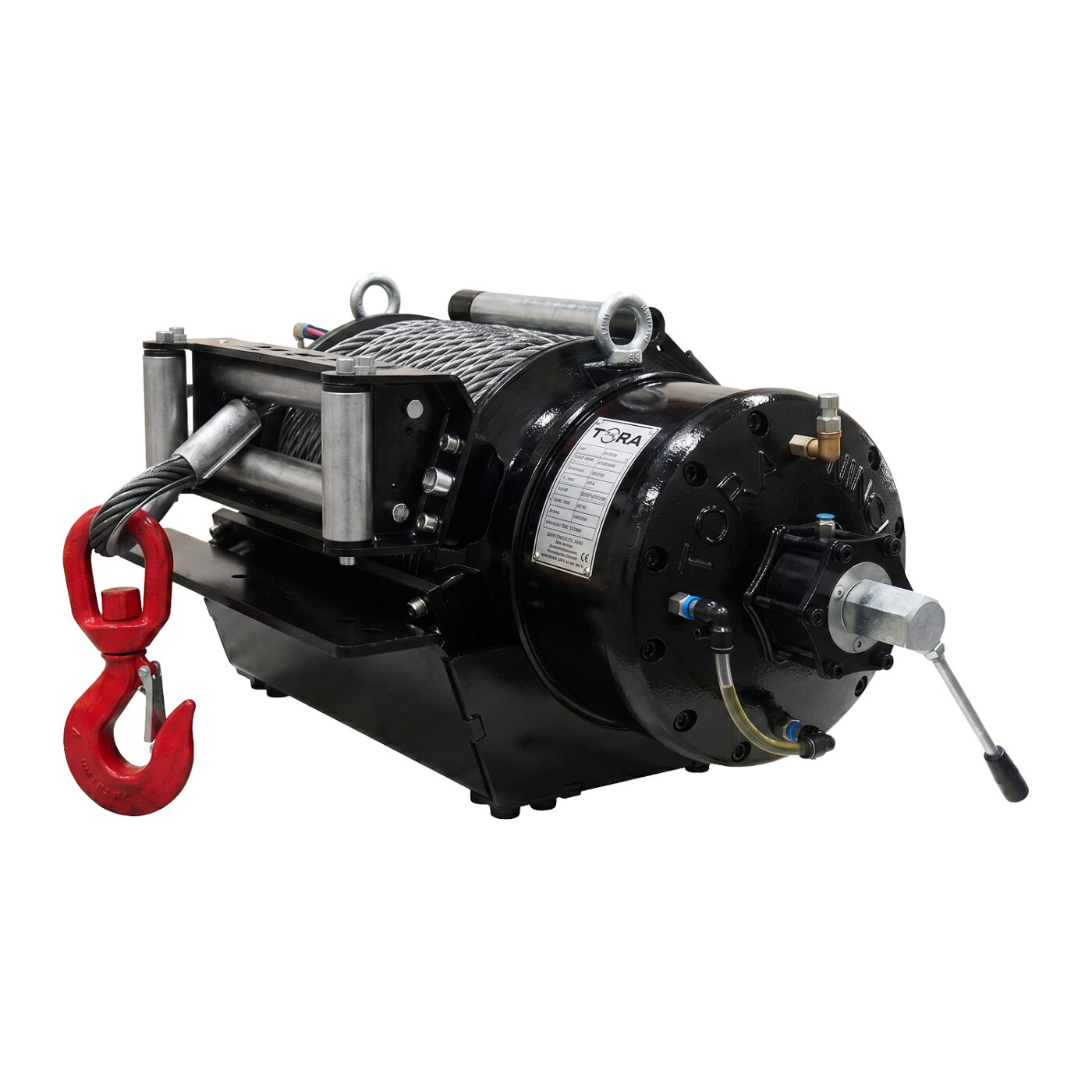

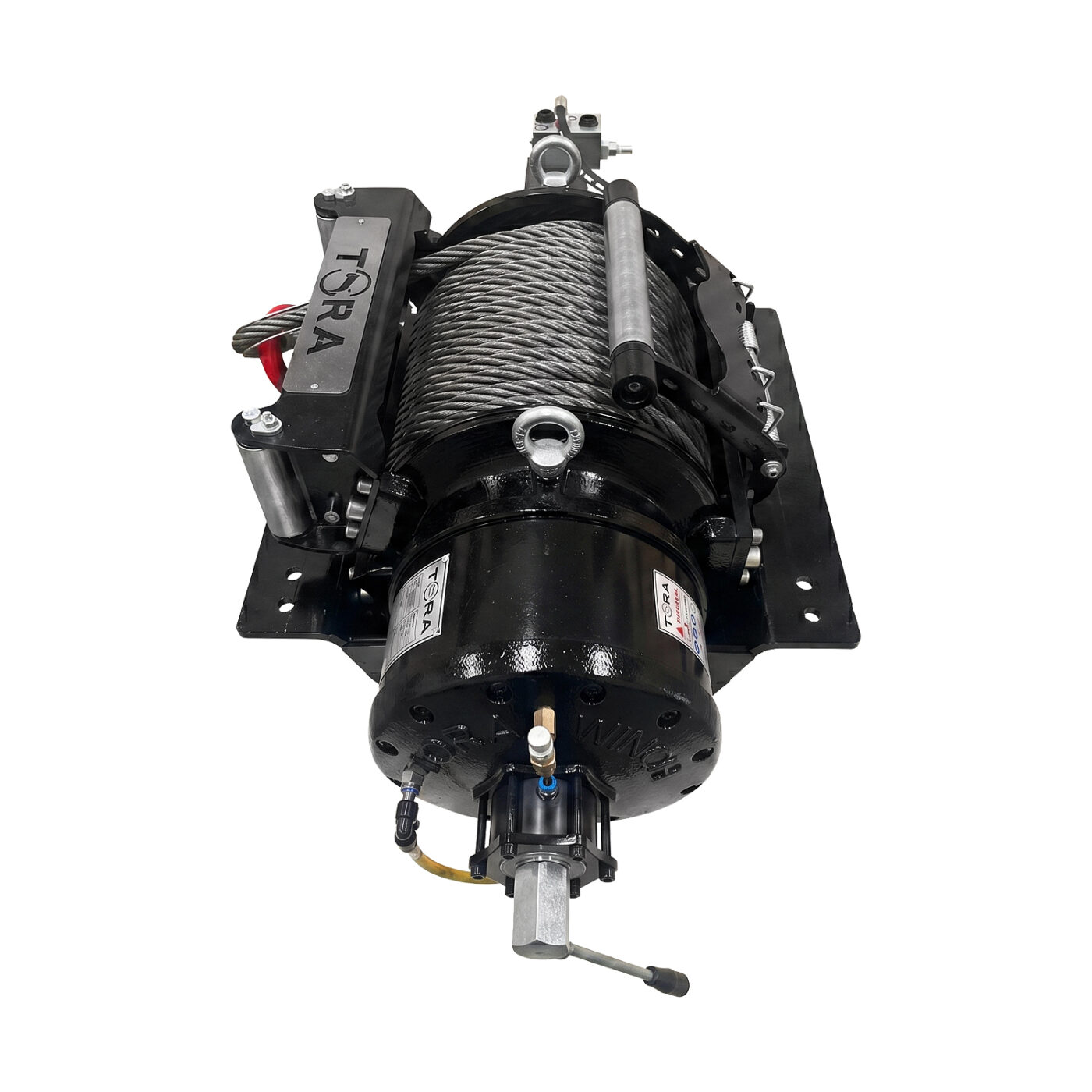

Hydraulic Winch 50,000 LBS | THD-50K

THD-50K Properties

  • Integrated Free Spool System With Pneumatic And Manual Lever Together.
  • External Visual Inspection Hose For Monitoring Of Oil Level And Contamination.
  • Compact, Lightweight And Powerful Design
  • Extra Reinforced Planetary Gear System With Special Steel Heat Treatment
  • Hydraulic Multi-Disc Brake System
  • Standard 4-Way Fairlead And Cable Tensioner
  • High Torque Hydromotor With Counter Balance Valve

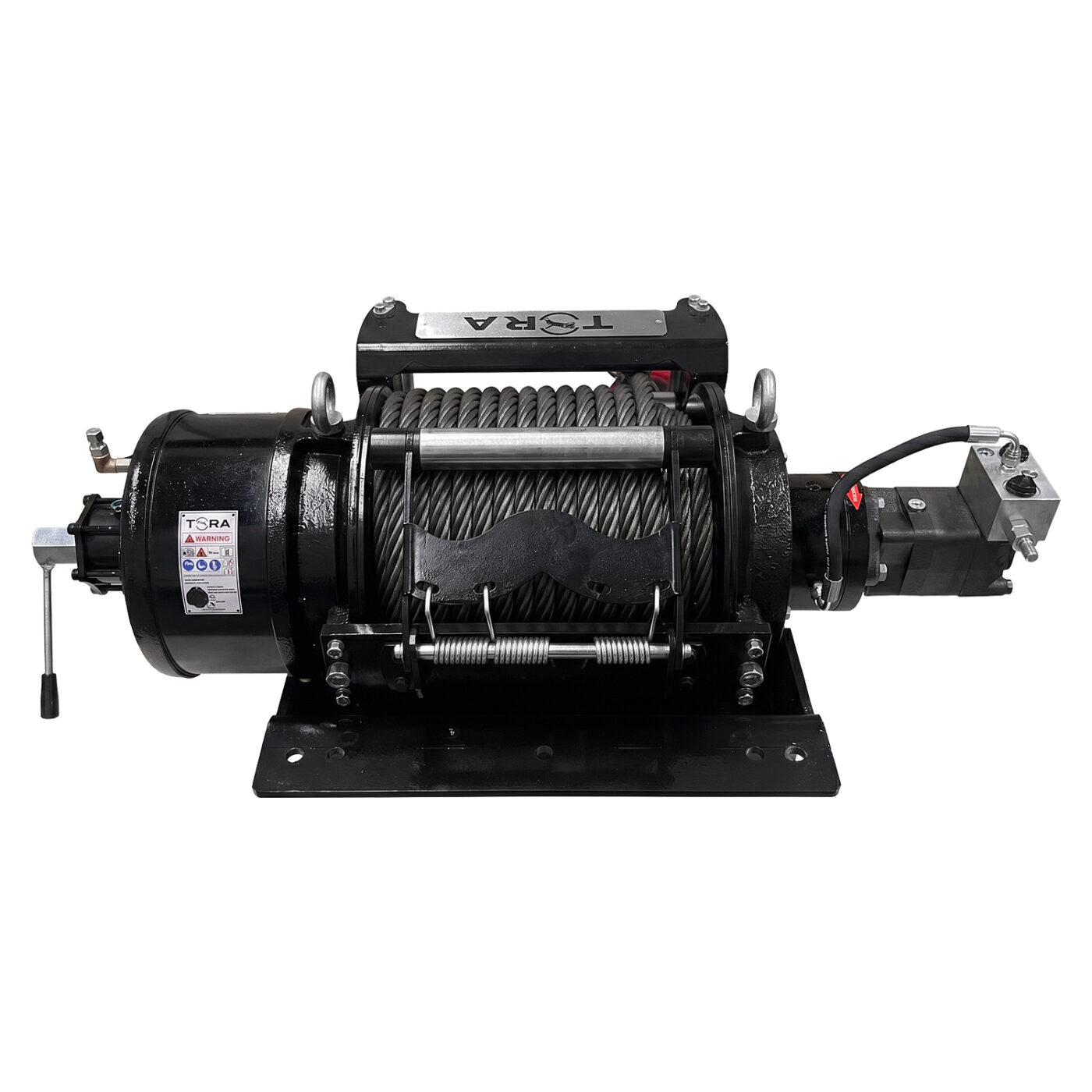

  • Specially Designed Bottom Mounting Plate
  • Meets CE-EN 14492-1 & SAE J706
Technical Catalog
User Manual

Applications : General Industrial, Mining & Construction, Oil & Gas, Railroad, Specialty Vehicle, Towing & Recovery, Trailer, Utility, Tractor, Drilling, Refuse Trucks, Hauling Trucks,

THD-50K Technical Data

Maximum Pulling Force 50.000 lbs
Rope Diameter 7/8”
Maksimum Rope Length 225 ft
Hydromotor 12.2 ci. (200 cc)
Maximum Pump Flow 19 GPM
Gear Ratio 48,57/1
Maximum Operating Pressure 2465 psi
Recommended Gear Oil 80w 90 (77 fl oz)
Weight 540 lbs
Free Spool Pneumatic & Manual
Speed 14 ft/min

Warning!

  • Valve’s a-b line must be opened (which is need to operate the hydraulic winch) otherwise hydraulic brake will release the load
  • Hydromotor Drain Port must be opened and installed to the oil tank
  • The last 5 winding cables should always be left on it
  • It is designed and manufactured for winch pulling purposes, do not use it to remove people or materials
