Hydraulic Winch 55,000 LBS | THW-55K

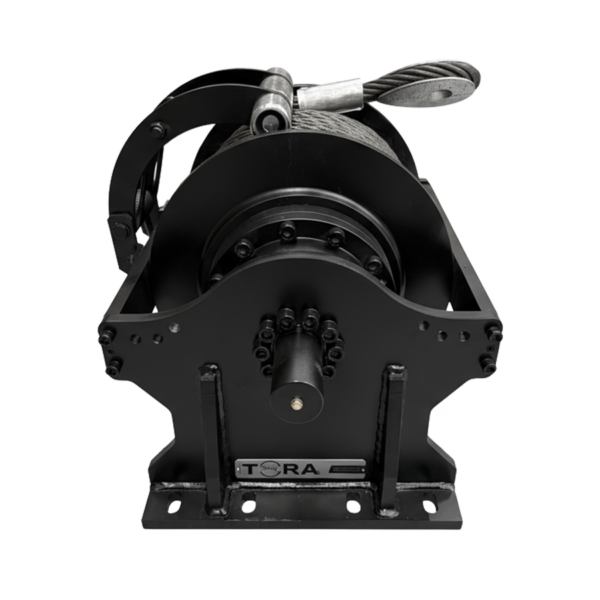

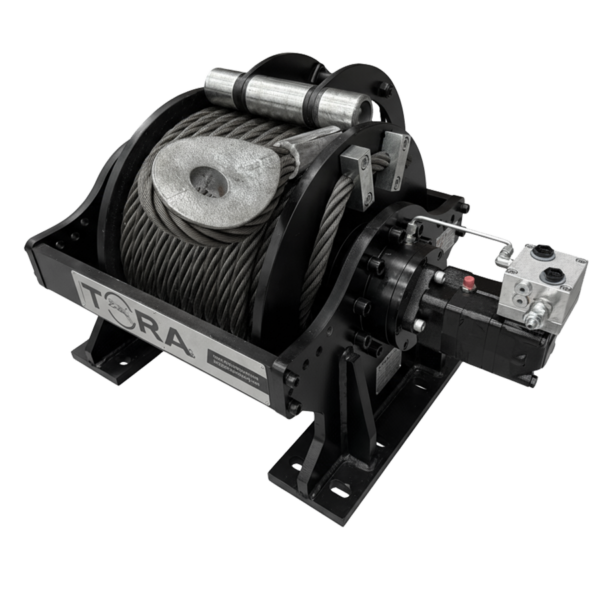

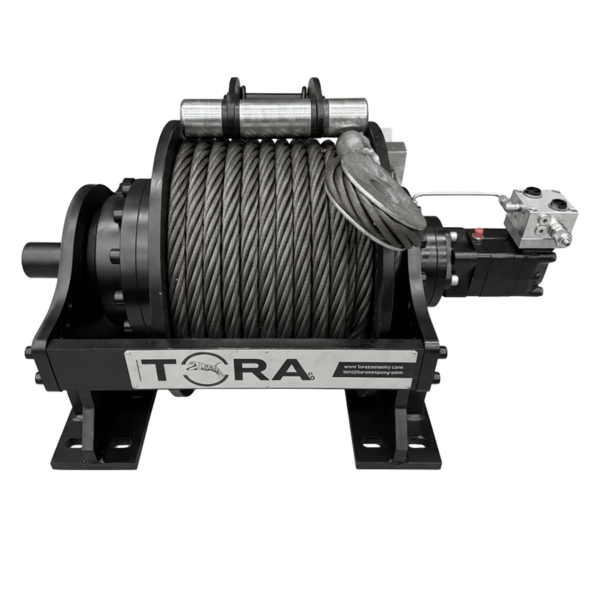

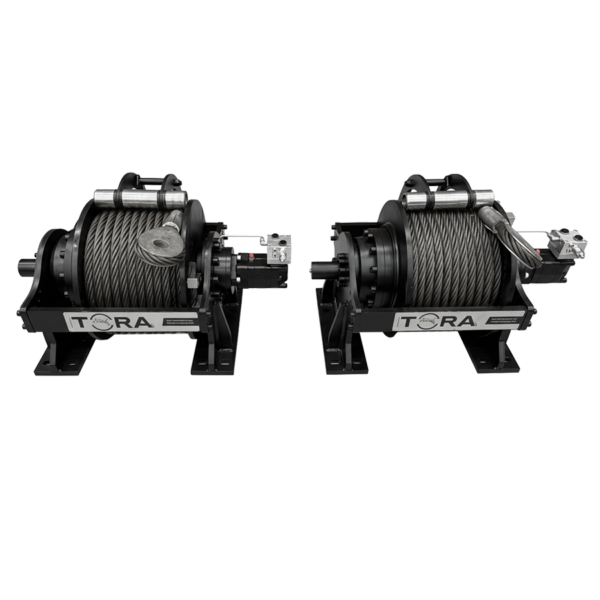

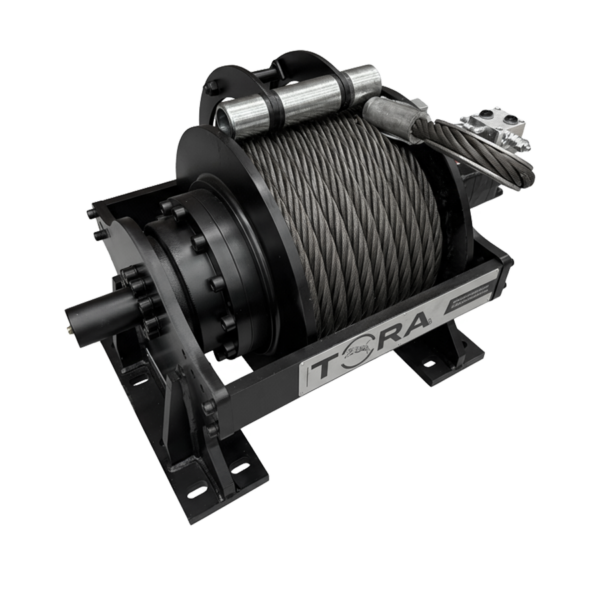

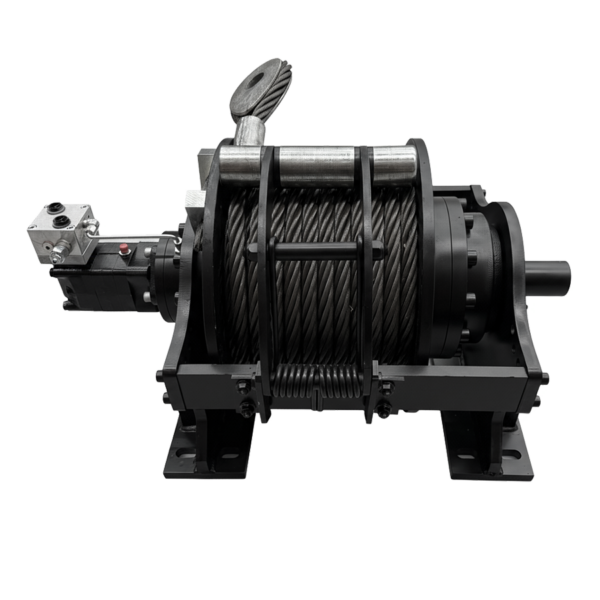

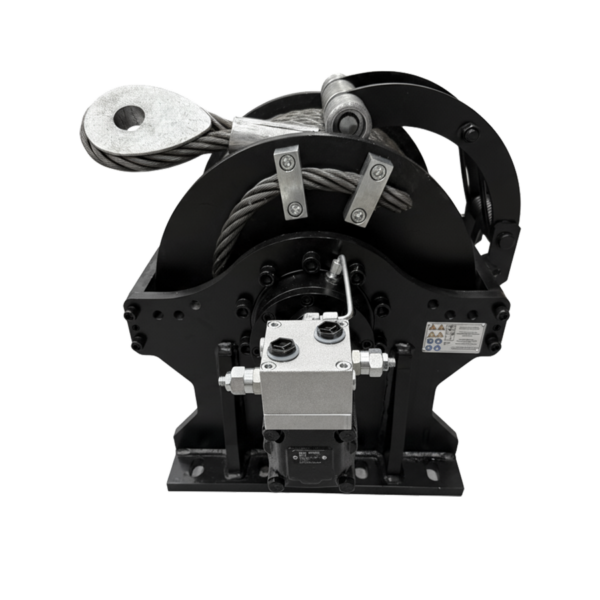

THW-55K Planetary Hydraulic Winch

  • Spring-Applied, Hydraulic Multi-Disc Brake System
  • Compact, Lightweight and Powerful Design
  • Pneumatic or Manual Free Spool as Standard
  • Optional 4- Way Fairlead Cable Guide and Cable Tensioner
  • Optional Personal Protective Panel
  • High Torque Hydraulic Motor with Counterbalance Valve
  • Meets CE-EN 14492-1
Technical Catalog
User Manual

Applications: General Industrial, Mining & Construction, Oil & Gas, Railroad, Agriculture, Specialty Vehicle, Towing & Recovery, Trailer, Utility, Tractor, Drilling, Refuse Trucks, Hauling Trucks, Tow Trucks&Trailers

THW-55K Technical Data

Maximum Pulling Force 55.000 lb
Cable Diameter15/16 in
Maksimum Cable Length196 ft
Hydraulic Motor15.25 ci. (250 cc)
Maximum Pump Flow19.8 gpm
Gear Ratio74/1
Maximum Operating Pressure2755 psi
Recommended Gear Oil140 w (135 fl oz)
Weight650 lb
Free Spool (Optional)Air or Manual
Speed10.4 ft/min

Warning!

  • Use a 4-way, 3-position motor spool directional control valve with an integral relief valve. Otherwise hydraulic brake will release the load.
  • Connect hydraulic motor drain port to the oil tank.
  • The last 5 winding cables should always be left on the drum to safely maintain friction and hold the load.
  • It is designed and manufactured for winch pulling purposes, never use the winch for lifting or transporting people.
