Hydraulic Winch 45,000 LBS | THD-45K

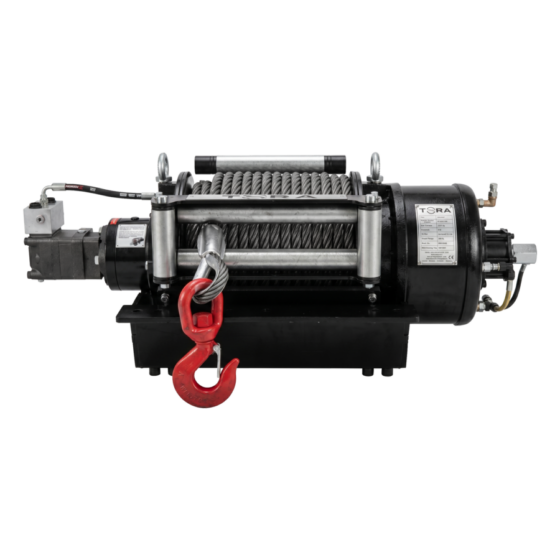

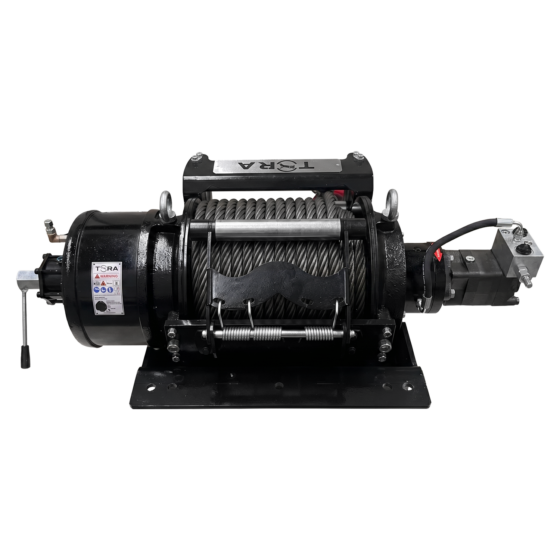

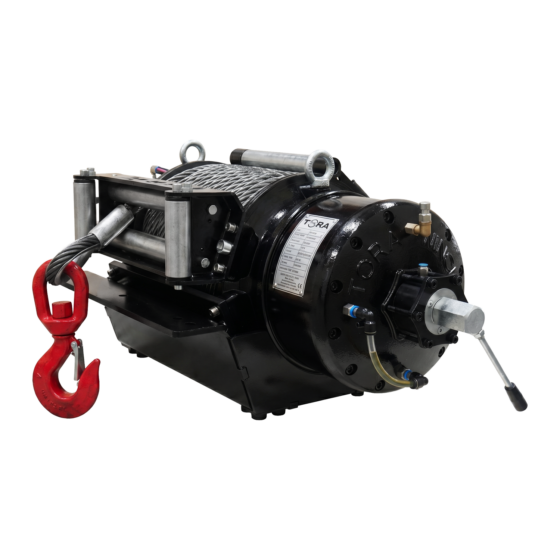

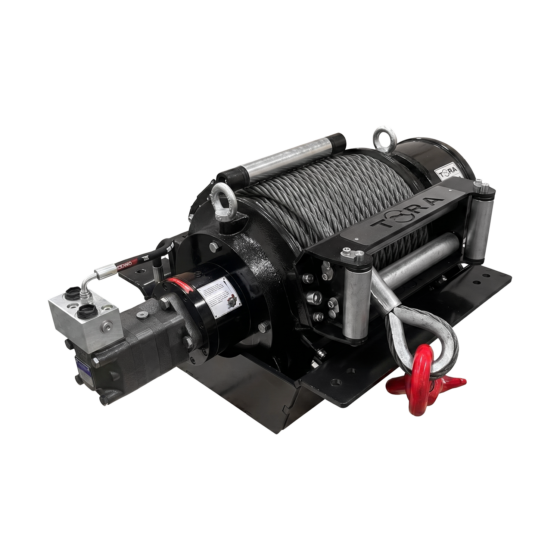

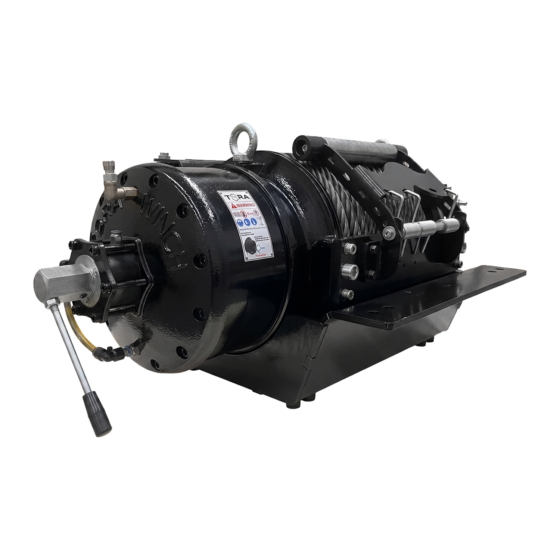

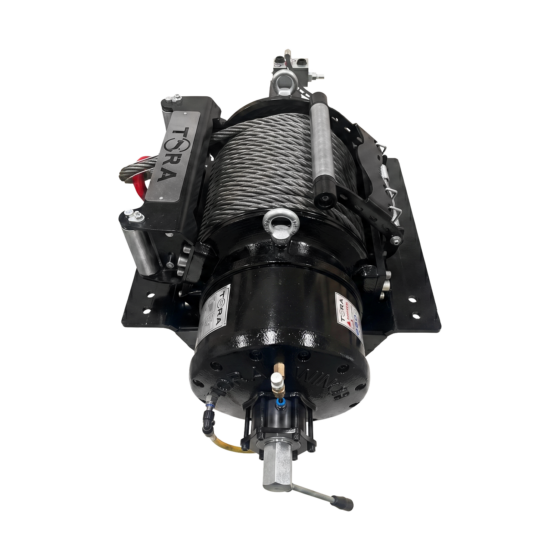

THD-45K Planetary Hydraulic Winch

  • Integrated Free Spool System with Pneumatic and Manual Lever Together.
  • External Visual Inspection Hose for Monitoring of Oil Level and Contamination
  • Spring-Applied, Hydraulic Multi-Disc Brake System
  • Optional 4- Way Fairlead Cable Guide and Cable Tensioner
  • Optional Custom Designed Bottom Mounting Plate
  • High Torque Hydraulic Motor with Counterbalance Valve
  • Specially Designed Bottom Mounting Plate
  • Meets CE-EN 14492-1 & SAE J706
Technical Catalog
User Manual

Applications: General Industrial, Mining & Construction, Railroad, Agriculture, Specialty Vehicle, Towing & Recovery, Trailer, Utility, Tractor, Drilling, Refuse Trucks, Tow Trucks&Trailers

THD-45K Technical Data

Maximum Pulling Force45.000 lbs
Rope Diameter3/4”
Maximum Rope Length250 ft
Hydromotor9.8 ci. (160 cc)
Maximum Pump Flow19 GPM
Gear Ratio48,57/1
Maximum Operating Pressure2465 psi
Recommended Gear Oil80w 90 (77 fl oz)
Weight540 lbs
Free SpoolPneumatic & Manual
Speed17 ft/min

Warning!

  • Use a 4-way, 3-position motor spool directional control valve with an integral relief valve. Otherwise hydraulic brake will release the load.
  • Connect hydraulic motor drain port to the oil tank.
  • The last 5 winding cables should always be left on the drum to safely maintain friction and hold the load.
  • It is designed and manufactured for winch pulling purposes, never use the winch for lifting or transporting people.
